Products

Brass Service Valves

Brass service valves

All products Made To U.S. HVAC/R Industry Quality Standards

Specifications

  • Air Tightness Pressure: 3.0MPa
  • Working Temperature: -30~ +120°C
  • Working Refrigerant: R22, R134a, R410A, R407C
  • Converse Leakage Difference < 500ml/min (∆P=1.0Mpa)
Charging
Valve
D1
MM		 D2
MM 		L
MM		 Hex
MM
JCP2-1
 7/16" - 20UNF NPT 1/4 31.5 14
JCP2-1A
 7/16" - 20UNF PT 1/4 31.5 14
JCP2-2
 7/16" - 20UNF 1/4" 26 11
JCP3-2
 1/2" - 20UNF 1/4" 26 14
JCP2-1.5
 7/16" - 20UNF 3/16" 22.3 11

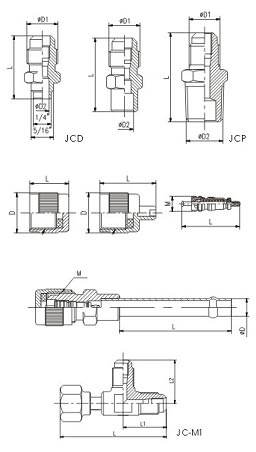

Brass Service Valves Dimensions
Type
 M D
MM 		L
MM
JC2-M1
 7/16" - 20UNF 13 13
JC3-M1
 1/2" - 20UNF 16 14
JC2-M2
 7/16" - 20UNF 13 19
JC2-Q
 0.216" - 36UNS na 19
JC2-01
 7/16" - 20UNF 44 1/4"
JC2-02
 7/16" - 20UNF 56 1/4"
JC2-03
 7/16" - 20UNF 124 1/4"
JC2-04
 1/2" - 20UNF 44 1/4"
JC2-05
 1/2" - 20UNF 124 1/4"



Type
 Connection L
MM 		L1
MM		 L2
MM
JC2-2
 7/16" - 20UNF 54 22 22



Type
 Tube Size D D1
MM		 D2
MM 		D3
MM 		D4
MM 		L
MM
FD5 - Y1
3/8" 4.8 112 112 112 112 100
FD5 - Y2
3/8" 4.8 120 120 120 120 100
FD5 - Y3
3/8" 4.8 140 140 140 140 100
FD5 - Y4
3/8" 4.8 120 120 120 120 100
FD5 - Y5
3/8" 4.8 140 140 140 140 100
FD5 - Y6
3/8" 4.8 135 135 135 135 100
FD5 - Y7
3/8" 4.8 150 150 150 150 100
FD5 - Y8
1/2" 6 160 160 160 160 100
FD5 - Y9
1/2" 6 190 190 190 190 100

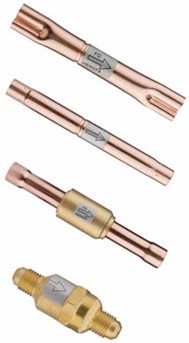

Check Valves

Check Valves
Type
 Tube Size D D1
MM		 D2
MM 		D3
MM 		D4
MM 		L
MM
FD5 - Y1
3/8" 4.8 112 112 112 112 100
FD5 - Y2
3/8" 4.8 120 120 120 120 100
FD5 - Y3
3/8" 4.8 140 140 140 140 100
FD5 - Y4
3/8" 4.8 120 120 120 120 100
FD5 - Y5
3/8" 4.8 140 140 140 140 100
FD5 - Y6
3/8" 4.8 135 135 135 135 100
FD5 - Y7
3/8" 4.8 150 150 150 150 100
FD5 - Y8
1/2" 6 160 160 160 160 100
FD5 - Y9
1/2" 6 190 190 190 190 100

Check Valve Dimensions
